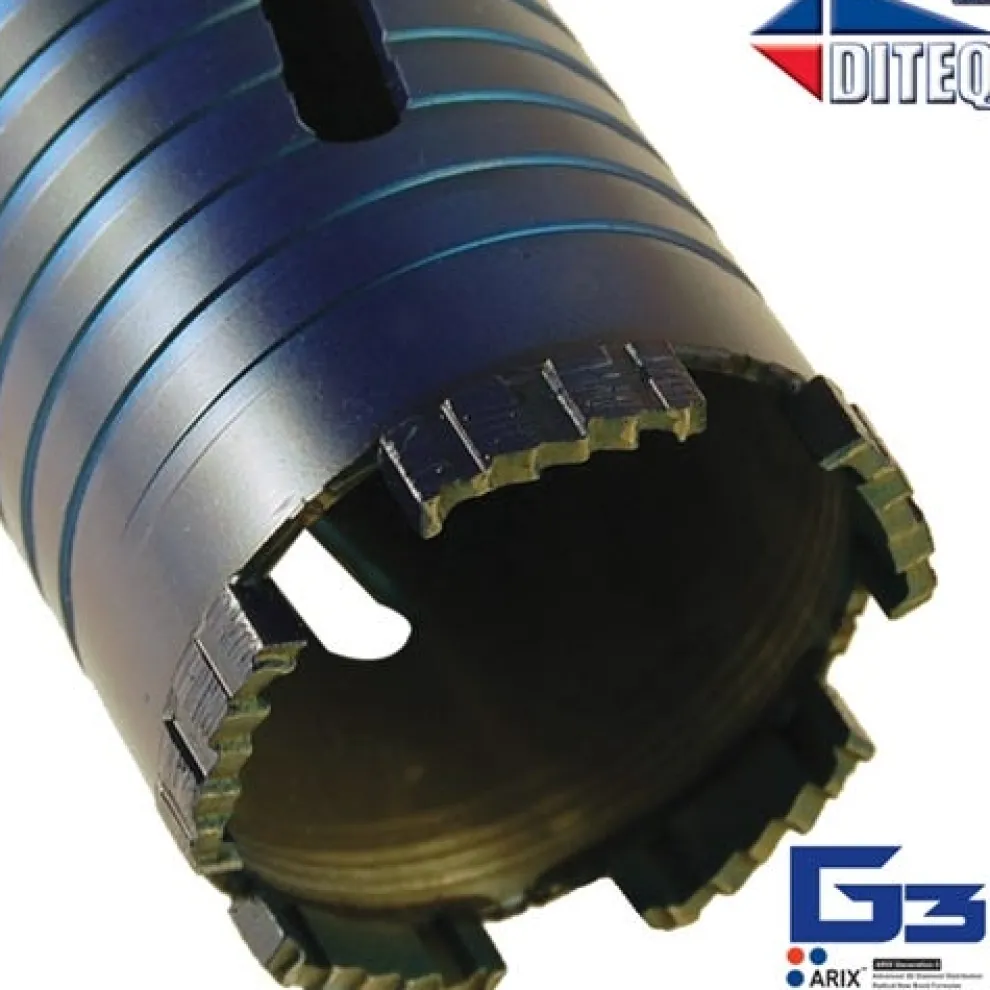

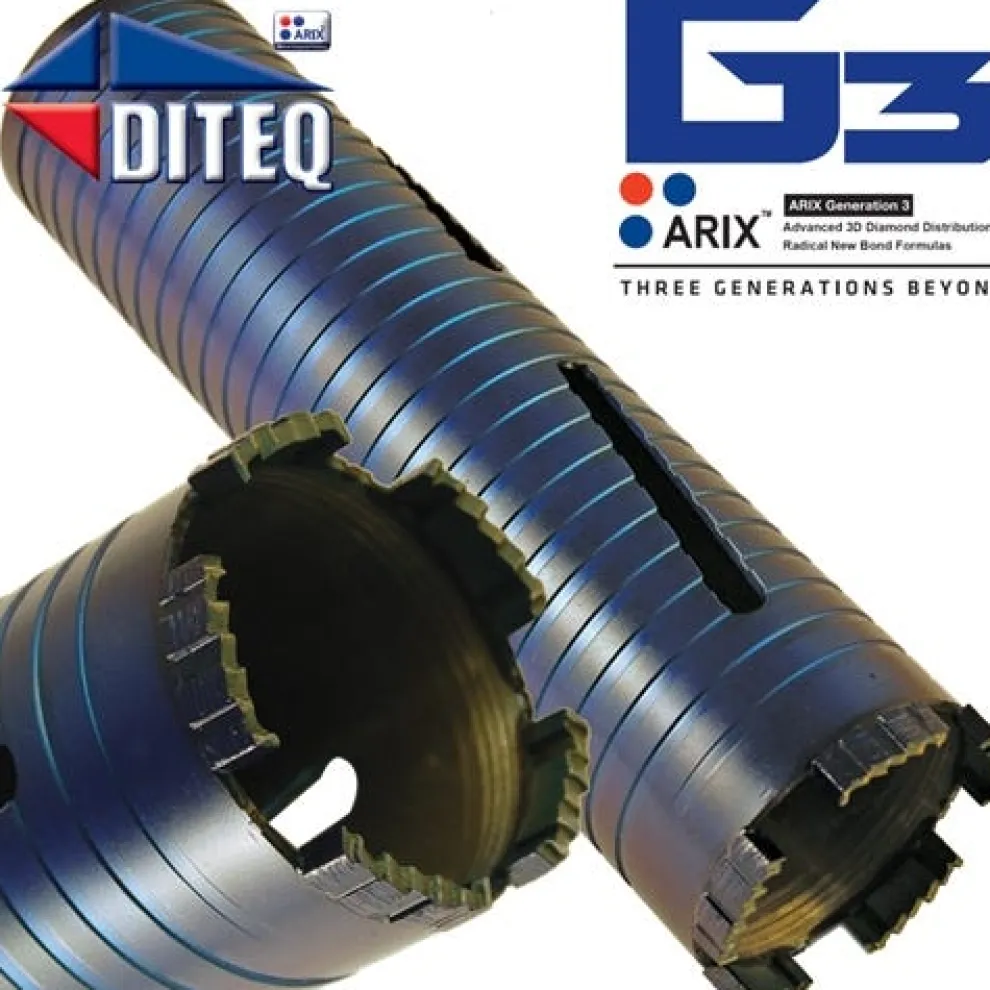

Diteq C-34AX DRY 5″ Concrete Diamond Core Bit (arbor 5/8″-11) D31530

DITEQ

C-34AX DRY 5 X 5/8″-11THD D31530

Designed to be used Wet or Dry on hand-held drills. ARIX technology provides faster cutting and longer life. For use on concrete with light to medium rebar. Aggressive segment design grips surface to prevent slippage for faster hole starting. Diagonal cut-out openings allow air flow for ample cooling without compromising bit strength. Turbo barrel design for smoother drilling. ARIX technology gives you maximum productivity with the lowest possible cost per inch /foot cut. Diamonds are individually placed in strategic positions to maximize cutting performance.

FEATURES:

• Drills Quazite Underground Enclosures With Ease
• Spiral grooves in barrel help clean out the hole
• Turbo segments for faster drilling
• Wet/Dry Use
• For drilling through reinforced concrete; brick; and block
• 5/8-11 Thread
• 9″ Drilling Depth

SPECIFICATIONS:

BIT APPLICATION	Reinforced Concrete
BIT SIZE OD	5″
BIT THREAD TYPE	5/8″-11
USABLE DRILLING DEPTH	9″
BARREL TYPE	Perforated Barrel
WET OR DRY USE	Wet/Dry Use
BIT SEGMENT HEIGHT	.315″ 8mm
SIZE ID APPROX	4.75″
SHIPPING WEIGHT	5.7 lbs

INCLUDES:

• (1)Core Bit

“
