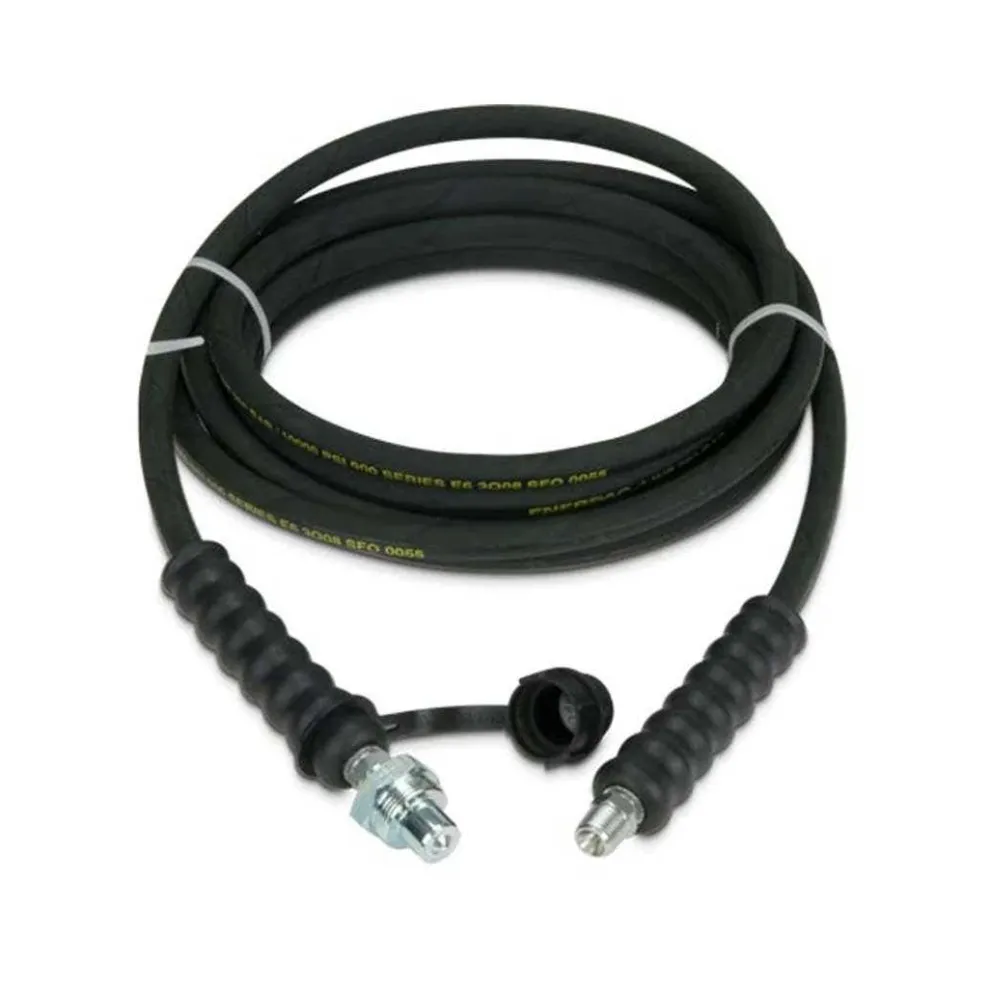

Enerpac 20′, Heavy-duty Rubber High Pressure Hydraulic Hose HC9220
$120.88
Latest Price: $120.88
Additional Details
Enerpac
20 ft., Heavy-duty Rubber High Pressure Hydraulic Hose HC9220
Enerpac H900-Series high-pressure hydraulic hoses are heavy-duty, rated for 10,000 psi (700 bar) and rubber coated. They provide the optimum combination of flexibility and low “memory” needed for long hose runs.
FEATURES:
- Crimped-on rubber strain relief for improved life and durability
- Maximum working pressure of 10,000 psi
- Rubber coated with two layers of steel wire braids
- Designed to comply with Material Handling Institute IJ-100 hose specification
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Oil Capacity (in3) | 11.78 |
| Internal Diameter (in) | 0.25 |
INCLUDES:
(1) Hydraulic Hose
Manufacturer Specifications
| internal Diameter | 6,4 mm | 0.25 in |
|---|---|
| Oil Capacity | 11.78 in³ |
| End Two Coupler | CH604 |
| News Feed Product Group | Hoses, Pumps |
| Hose Oil Capacity | When using greater hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for 6,4 mm inside diameter hoses: Capacity (cm3) = 32,1699 x Length (m) cm³ | When using long hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for .25″ internal diameter hoses: Capacity (in3) = .5892 x Length (ft) in³ |
| Length | 20 ft |
| End One Coupler | 3/8″ NPTF |
| Sub Types | Heavy-duty Rubber Hose |
| Type | Hose |
| Country of Origin | United States |
| Shipping Weight | 8.3 lbs |
| Product Line | Industrial Tools |
Specifications
| OPT SKU | ENP-HC9220 |
|---|---|
| MPN | HC9220 |
| UPC/GTIN | 662005203680 |
| Product Type | Hydraulic Components & Fittings |
| Shipping Weight | 9.00 |
