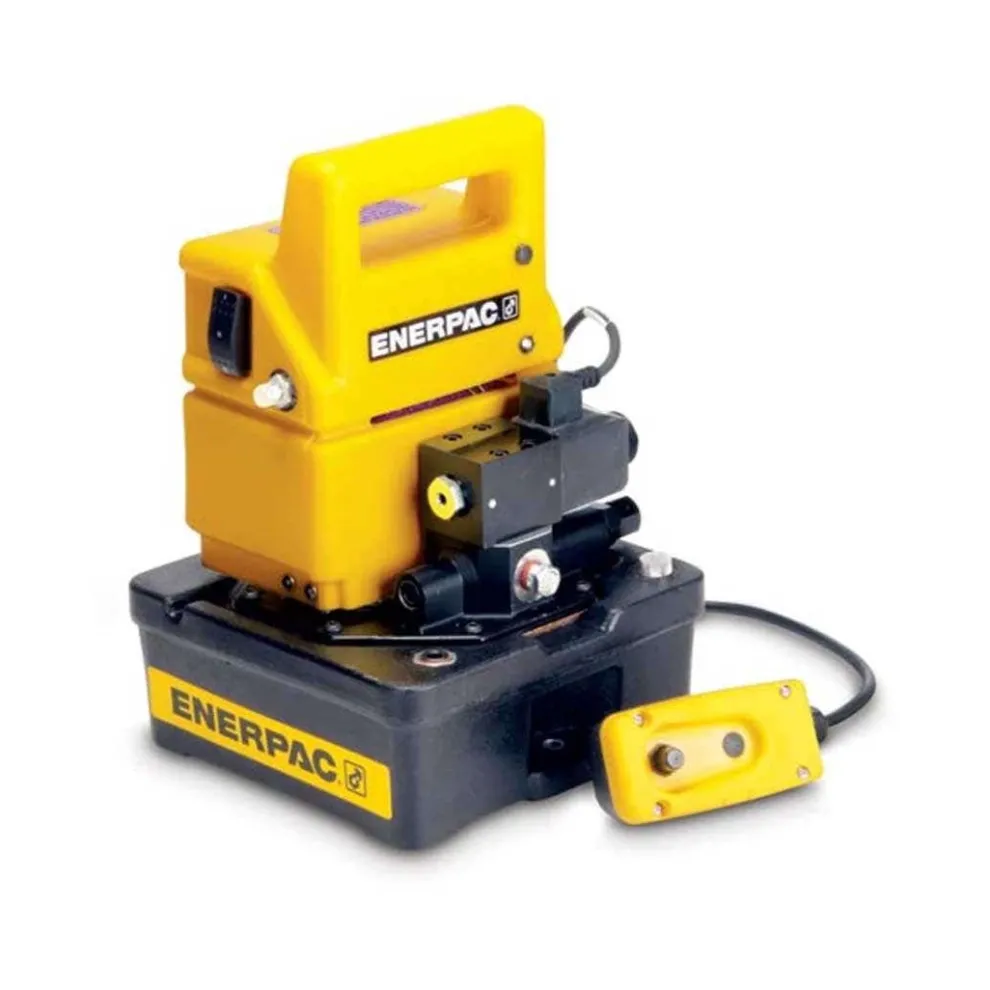

Enerpac Economy Electric Dump Valve Hydraulic Two Speed Pump PUD1100B
Original price was: $4,536.00.$128.88Current price is: $128.88.
Latest Price: $128.88
Additional Details
Enerpac
Economy Electric Dump Valve Hydraulic Two Speed Pump PUD1100B
FEATURES:
- The Economy pump is best suited to power small to medium size cylinders or hydraulic tools. Its lightweight and compact design makes it ideal for applications which require easy transport of the pump.
- The Universal motor works well on long extension cords or generator driven electrical power supplies.
- Provides advance/auto-retract of single-acting cylinders
- Ideal for punching applications
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Cylinder Compatability | Single-acting |
| Maximum Flow at Rated Pressure | 20 in3/min |
| Motor Voltage | 115 V |
INCLUDES:
(1) Hydraulic Pump
Manufacturer Specifications
| Dimension F | 8 In | 203 Mm |
|---|---|
| Sound Leveld Ba | 85 |
| Type | Hydraulic Pump |
| Current Draw Amps | 9.5 |
| Maximum Operating Pressure Ranges Bar | 700 |
| Usable Oil Capacity | 1,9 Litres |
| Cylinder Compatability | Single-acting |
| Motor Voltage | 115 V |
| Shipping Weight | 32.52 lbs |
| Output Flow Rate 1st Stage | 200 in³/min | 3,31 L/min |
| Maximum Flowat Rated Pressure | 20 in3/min |
| Dimension A | 9.62 In | 244 Mm |
| Pump Operation | Dump |
| Pressure Rating2nd Stage bar | 700 |
| Maximum Operating Pressure Ranges Psi | 10000 |
| Output Flow Rate 2nd Stage | 20 in³/min | 0,32 L/min |
| Motor Electrical Specification | 115 V, 50/60 Hz |
| Pump Control | Pendant |
| Maximum Flow Rate Rangesat Rated Pressure | 0 – 20 in³/min | 0 – 0,34 L/min |
| Dimension J | 5.25 In | 133 Mm |
| Dimension E | 4.72 In | 119 Mm |
| Maximum Flow At Rated Pressure liter | 0.32 |
| Maximum Flow At Rated Pressure | 20 in³ |
| Reservoir Capacity | 1900 cm³ | 116 in³ |
| Pressure Rating1st Stage Psi | 200 |
| Pump Power Source | Electric |
| Maximum Flow At Rated Pressure metric | 0,32 l/min |
| Weight | 26 lbs | 11,8 kgs |
| News Feed Product Group | Pumps |
| Pressure Rating1st Stage bar | 13 |
| Pressure Rating2nd Stage Psi | 10000 |
| Dimension B | 9.62 In | 244 Mm |
| Valve Function | Advance / Retract |
| Motor Size | 0.5 HP |
| Dimension C | 14.25 In | 362 Mm |
| Usable Oilcapacity | 0.5 Gal |
| Dimension H | 0.4 In |
| Duty Cycle | Intermittent |
| Upsell item | XC1302SB |
| Sub Types | Electric Pump – Economy |
| Product Line | Industrial Tools |
| Maximum Flow At Rated Pressure imperial | 20 in3/min |
| Country of Origin | United States |
| Dimension D | 4 In | 101 Mm |
Specifications
| OPT SKU | ENP-PUD1100B |
|---|---|
| MPN | PUD1100B |
| UPC/GTIN | 662005106486 |
| Product Type | Hydraulic Components & Fittings |
| Shipping Weight | 26.00 |
