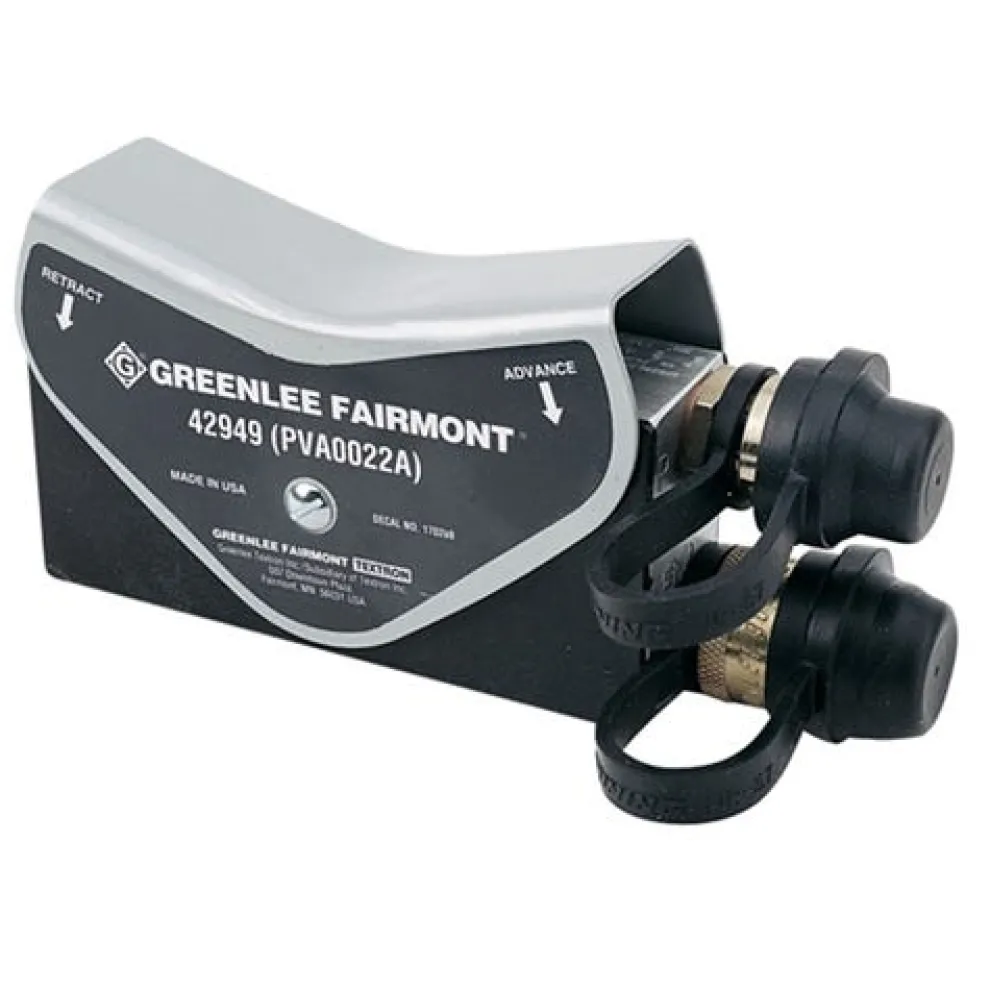

Greenlee 4 Way 3 Position Control Valve for Double-Acting Tool w/ Disconnects PVA0022
$124.89
Latest Price: $124.89
Additional Details
- Greenlee
- 4 Way; 3 Position Control Valve for Double-Acting Tool w/ Disconnects PVA0022
- May be directly connected to the tool or used remotely with hoses
- Compact 4-way; 3-position valve
- 3;000 – 4;000 psi (207 – 275 bar) return line ground dump safety valve
- Controlled advance and built-in hold feature
- Single-acting valve available to use with existing single-acting tools
- Application : For Cutter And Crimping Tool
- Couplers : High Pressure Quick-Disconnects Included; 10000 PSI (700 BAR)
- Height : 3.500 IN (89.000 MM)
- Input Flow Range : 3 – 8 GPM (12 – 30 LPM)
- Length : 7.500 IN
- Operating Pressure : 10000 PSI (700 BAR) Return Relief
- Port Size Inlet : 1/4 – 18 NPTF; 1/4 – 18 NPSM Tool
- Return Pressure : 5000 PSI (350 BAR)
- Type : High Pressure Hydraulic; 4 Way; 3 Position
- Weight : 2.800 LB
- Width : 2.000 IN (44.000 MM)
Manufacturer Specifications
| Height | 3.500 IN (89.000 MM) |
|---|---|
| Port Size Inlet | 1/4 – 18 NPTF, 1/4 – 18 NPSM Tool |
| Width | 2.000 IN (44.000 MM) |
| Country of Origin | United States |
| Input Flow Range | 3 – 8 GPM (12 – 30 LPM) |
| Length | 7.500 IN |
| Operating Pressure | 10000 PSI (700 BAR) Return Relief |
| Weight | 2.800 LB |
| Couplers | High Pressure Quick-Disconnects Included, 10000 PSI (700 BAR) |
| Return Pressure | 5000 PSI (350 BAR) |
| Type | High Pressure Hydraulic, 4 Way, 3 Position |
Specifications
| OPT SKU | GRPVA0022 |
|---|---|
| MPN | PVA0022 |
| UPC/GTIN | 783310429494 |
| Product Type | Hydraulic Components & Fittings |
| Shipping Weight | 4.00 |
