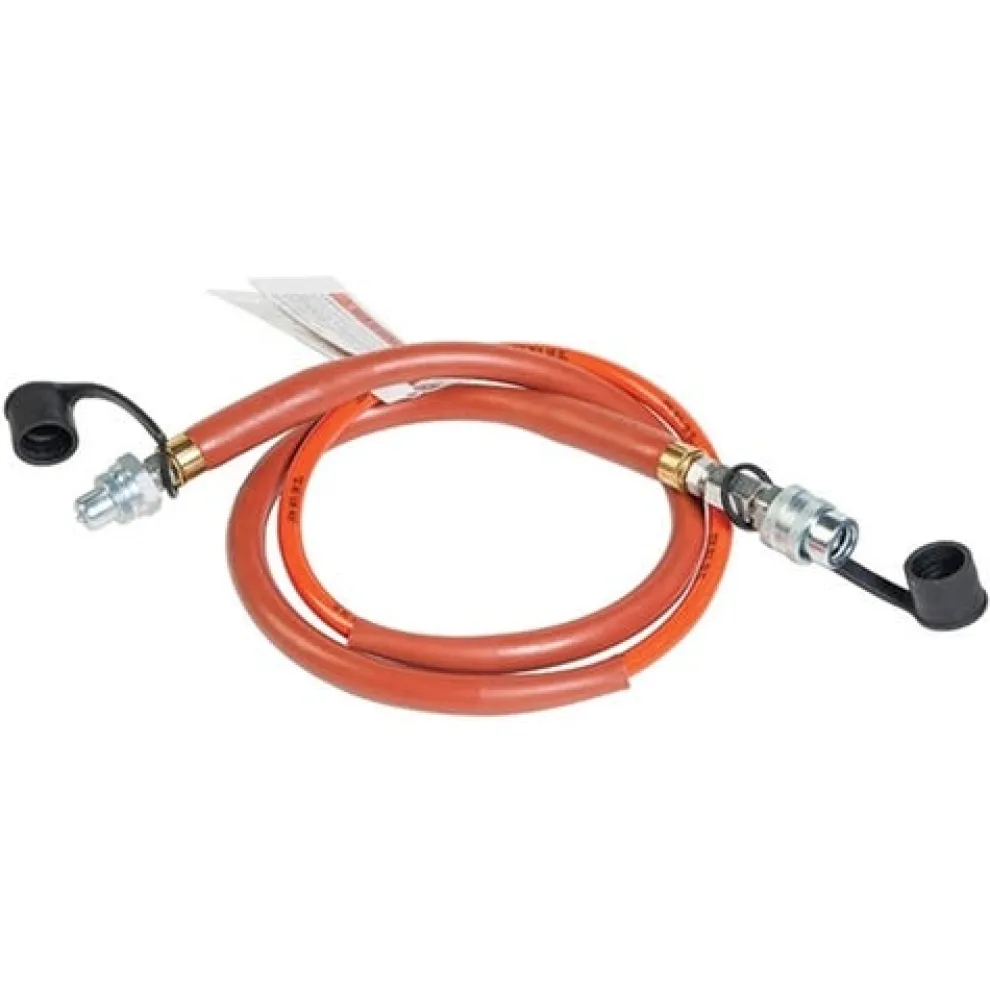

Greenlee Non-Conductive Hydraulic Hose 3/8″ Male/Female 10′ NC-10-38MF

• Greenlee
• Non-Conductive Hydraulic Hose 3/8 Male/Female 10ft NC-10-38MF
• SAE J517 non-conductive hose construction.
• Less than 50 micro-amperes leakage when subjected to 100;000 volts/ft for 5minutes
• UV resistant cover
• Spiraled high tensile aramid fiber reinforcement
• Application : Hydraulic Hose
• Color : Orange polyurethane non-perforated cover; Non-conductive marking and color code
• Connection : 3/8″ NPT screw-type male and female
• Diameter : 3/16″ (4.8mm)
• Includes : Double rubber cap to protect fittings while not in use
• Length : 10 foot
• Material : Spiraled high tensile aramid fiber reinforcement; Nylon-lined core tube
• Pressure Rating : 40;000 PSI pressure burst rating
• Type : Non-Conductive
• Working Pressure : 10;000 PSI max working pressure

“
